CHINA WIN TONE MACHINERY
    • NF Duplex Coarse Cereal Milling Machine
      Writer: Coarse Cereal Milling Machine From: Coarse Cereal Milling Machine
      Size: Big Medium Small Time: 2015-08-18 10:45:28

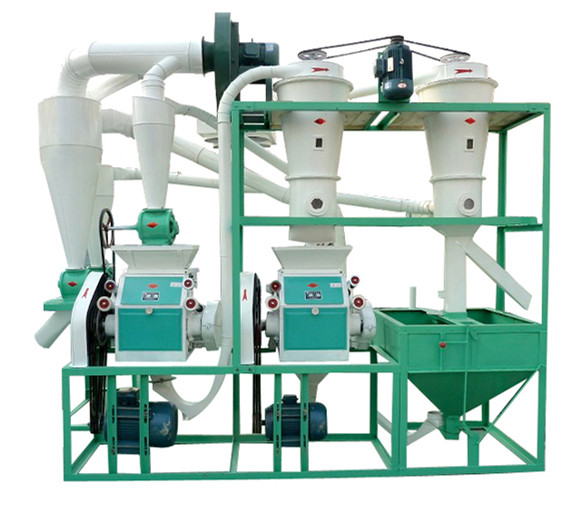

      NF Duplex Coarse Cereal Milling Machine

      Duplex Coarse Cereal Milling Machine.jpg


      Duplex coarse cereal milling machine
      is mainly used in small size of coarse grain flour processing plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and low production cost. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

      coarse cereals milling machine


      NF Duplex Coarse Cereal Milling Machine



      Working principle and features:
      The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.
      High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.


      Technical parameter:

      Model

      Yield

      Roller Specificationmm

      Fast Roller Speedr/min

      Power

      Weight

      Outline Size

      kg/h

      (kw)

      kg

      (mm)

      NF-2235

      400-500

      Ф220×350

      650

      15+3

      1100

      4000x1300x4200

      NF-2240

      500-550

      Ф220×400

      650

      22+3

      1250

      4000x1500x4200

      NF-2250

      600-650

      Ф220×500

      650

      30+3

      1400

      4000x1800x4200



        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
