      NF Single Coarse Grain Flour Milling Machine


      NF Single Coarse Grain Flour Milling Machine


      NF Single Coarse Grain Flour Milling Machine


      NF Single Coarse Grain Flour Milling Machine


      NF Single Coarse Grain Flour Milling Machine

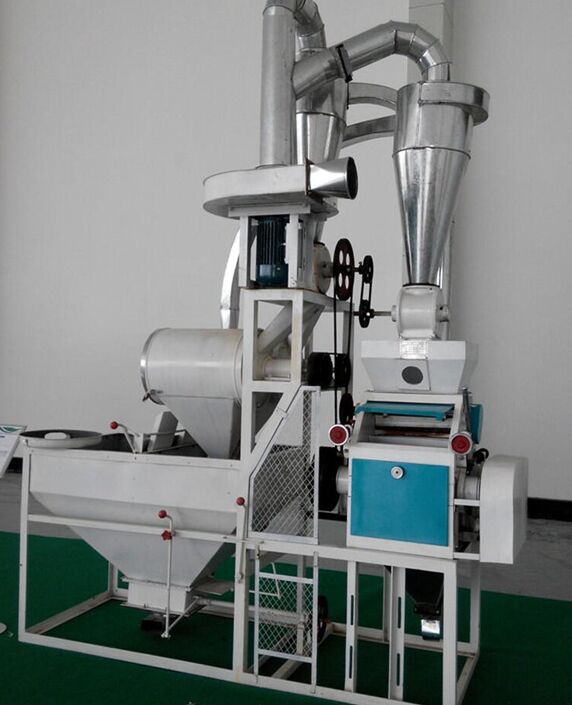

      NF single coarse grain flour milling machine is mainly used in small size of coarse grain flour milling plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and low production cost. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

      Working principle and features:
      The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.

      Technical parameter:

      Model
      Yield
      (KG/H)
      Roll Specification(mm)
      Fast Roller Speed(r/min)
      Power
      (kw)
      Weight
      (KG)
      Outline Size
      (mm)
      NF-2235
      300-350
      Ф222×350
      650
      7.5+3
      300
      2200x800x4000
      NF-2240
      400-500
      Ф222×400
      650
      11+3
      700
      2200x900x4000
      NF-2250
      500-550
      Ф222×500
      650
      15+3
      800
      2200x1000x4000



       ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
