Duplex Corn Milling Equipment

Duplex corn milling equipment is mainly used in small scale of corn flour processing plants. The corn milling equipment can grind corn into flour by the grinding roller.

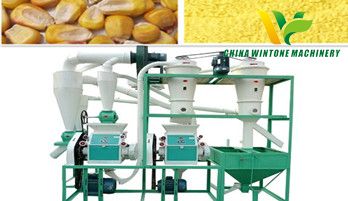

NF series of duplex corn milling equipment is mainly used in small scale of corn flour processing plants. NF corn milling equipment can grind corn into flour by the grinding roller. After screening and winnowing, the corn flour and corn bran is packaged separately. Duplex corn milling equipment can also process wheat, beans and other grain.


corn milling equipment.jpg



NF series of duplex corn milling equipment has the features of reasonable structure, stable running, reliable performance, low energy consumption, high efficiency, low production cost, good benefit, low noise, sanitation, safety, easy installation, flexible adjustment, simple operation and maintenance.


corn milling equipment.jpg



The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.


Technical parameter of NF series of duplex corn milling equipment:


Model
Yield
(kg/h)
Roller Specification(mm)
Fast Roller Speed(r/min)
Power
(kw)
Weight
(kg)
Outline Size
(mm)
NF-2235
400-500
Ф220×350
650
15+3
1100
4000x1300x4200
NF-2240
500-550
Ф220×400
650
22+3
1250
4000x1500x4200
NF-2250
600-650
Ф220×500
650
30+3
1400
4000x1800x4200

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
