Maize Milling Equipment Maize Flour Milling Machine

Machine

Maize Milling Equipment Maize Flour Milling Machine

Maize milling equipment is mainly designed to grind maize into fine flour with dry method and pneumatic control system.

Maize milling equipment is mainly designed to grind maize or wheat into fine flour with dry method and pneumatic control system. Pneumatic maize milling equipment adopts frequency convertion for feeding and there has negative pressure air suction device in the grinding center part to ensure the feeding state and reduce the temperature for the grinding roll and the material.

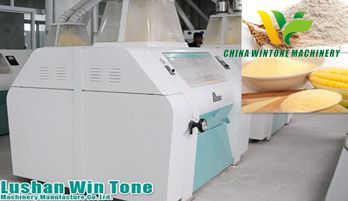

maize milling equipment maize flour milling machine.jpg


The pneumatic maize milling equipment can be operated as the single machine, or be controlled remotely or automatically by computer. With breaking, cutting, hulling, rubbing of the material, the effect of grinding is achieved. This Pneumatic Maize Flour Mill is suitable for large, medium size corn processing plants. The series of milling machine are the main facilities of the maize flour mill, employed for wheat, corn and coarse grain process. It depends on one pair of opposite differential rotation to peel materials, extracting the endosperm and milling it into flour.


Maize milling equipment has the following features:
1. Pneumatic maize milling equipment has electrostatic spraying surface, bright color, elegant design, and luxurious appearance;
2. It can be operated as the single machine, or be controlled remotely or automatically by computer;
3. In addition to pneumatic clutch, electromagnetic clutch can also be applied. Small size, low cost, easy to install, reliable performance;
4. The eccentric structured grinding roller is an independent self sustaining system and well shock absorbed;
5. Flat grinding roller set, the material is easy to enter the grinding chamber, efficient, convenient to maintain;
6. Synchronous rotation roller, smoothly operated, low noise, safe and environmentally protected;
7. The centre of the Pneumatic Maize Flour Mill with negative pressure suction device can improve feeding status, lower temperature of the material;
8. Finished products of grits, flour in uniform particle size, excellent quality, and large output.



End products of maize milling equipment:



Maize Flour:
maize milling equipment maize flour.jpg

Wheat Flour:
maize milling equipment wheat flour.jpg




Technical parameter of pneumatic maize milling equipment:

Model
Yield
(T/H)
Power
(KW)
Spindle Speed(r/Min)
Weight
(kg)
Outline Size
(MM)
HX125/25
2.5-3
30-5.5
450-600
4100
2072×1490×1920



  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
