Ugali Milling Machine Ugali Mill

Machine

Ugali Milling Machine Ugali Mill

Ugali Milling Machine can help us make high quality ugali flour or posho

Ugali Milling Machine can help us make high quality ugali flour or posho.

VIDEO

Ugali Milling Machine Ugali Mill



Ugali Milling Machine Ugali Mill

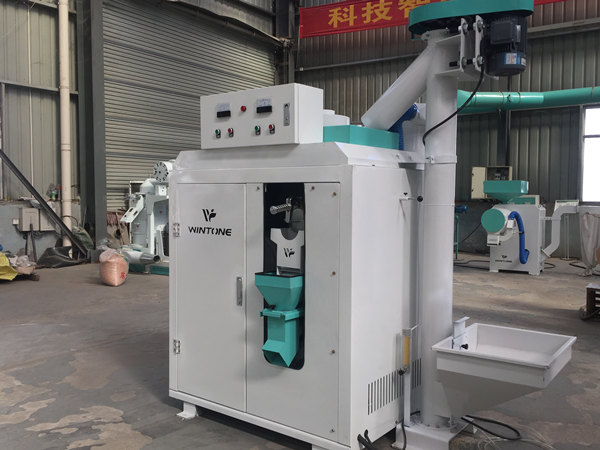

NF28-36 Ugali Milling Machine Ugali Mill is our newly developed corn processing equipment based on African market demand and the local diet tradition, especially the demand in white corn flour milling.

NF28-36 African Maize Flour Grinding Machine consists of different functions together: corn peeling, polishing, degerming, cleaning and flour milling and can produce corn flour directly used in cooking. It is the ideal equipment for large quantity of corn processing enterprises and individual users for its multi-functions, compact structure, high efficiency and low energy consumption.


  Ugali Milling Machine Ugali Mill


NF28-36 Ugali Milling Machine Ugali Mill Structure and Working Principle
:

1.It is mainly composed of the following parts: conveying, peeling, air blowing, flour milling, dedusting, transmission and machine frame.

2.After cleaning, corn is blended with a small quantity of water(≤3%), and then is conveyed to the moistening barn for 7-10 minutes. Then it is sent into the peeling chamber for peeling. The mutual friction among corn, high-speed rotation iron roller and sieve plate damages the bonding strength among the corn endosperm, corn bran and corn germ and makes them separated.

After peeling, corn kernels are sent into the grinding chamber and are milled under the force of high-speed rotation, impacting and shearing. The granules smaller than the sieve plate mesh are discharged out of the machine. And the larger ones are processed repeatedly.

Then the mixing material is sent into the filtration fabric for air exhausting. At last, the flour is collected and packaged.



NF28-36 Ugali Milling Machine Ugali Mill Technical Parameter:


Model
原粮
Unprocessed Grain
产量
Yield
(kg/h)
风量
Air Volume
(m³/h)
重量
Weight(kg)
动力
Power
(kW)
皮杂率
Bran Rate(%)
粉粒细度
Powder Fineness(mesh)
外形尺寸
Boundary Dimension
(mm)
NF28-36
玉米
corn
600-850
2200-2600
800
22
19-30
30-60


2000×1200×3100
水稻
paddy
350-450
40-60
豆类
bean
250-350
40-60


NF28-36 African Maize Flour Grinding Machine



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
