YTZF 28-40 Maize Mill for Posho with Diesel Engine

YTZF 28-40 Maize Mill for Posho with Diesel Engine

Maize Mill is our newly developed maize processing equipment for African. Multi-function Maize Milling Machine can make high quality super white maize meal,breakfast meal,roller meal,very good for making Fufu,Ugali,Unga etc Staple Africa food. This machine is equiped automatic feeding system.

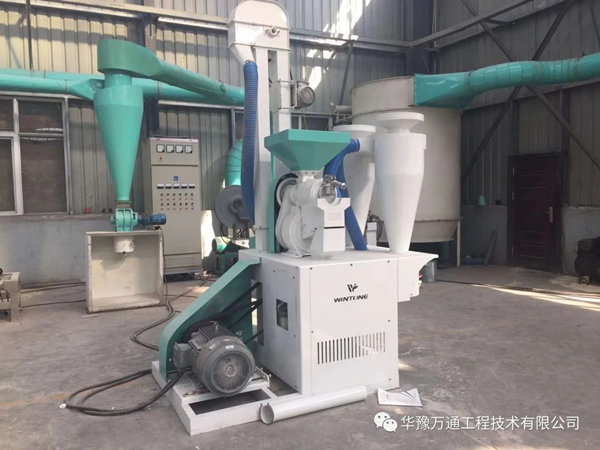

Posho mill for grinding maize


Working Principle:

Touch screen control/Schneider electric components/high quality switch/standard cable connection. This design include the truck scale,maize store silo,maize milling machine workshop,the maize meal store,office

1. The clean part:

To clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening.this section is make the wheat to prepare for milling part and to protect the machinery as well.

2. The flour milling part:

Include different number of mill and sifter to mill the wheat and separate the flour and bran

(1) Mill: mill the wheat to break the integrity by the roller moving

(2) Sifter: to separate the flour and bran, also separate large size and small size to ensure flour quality

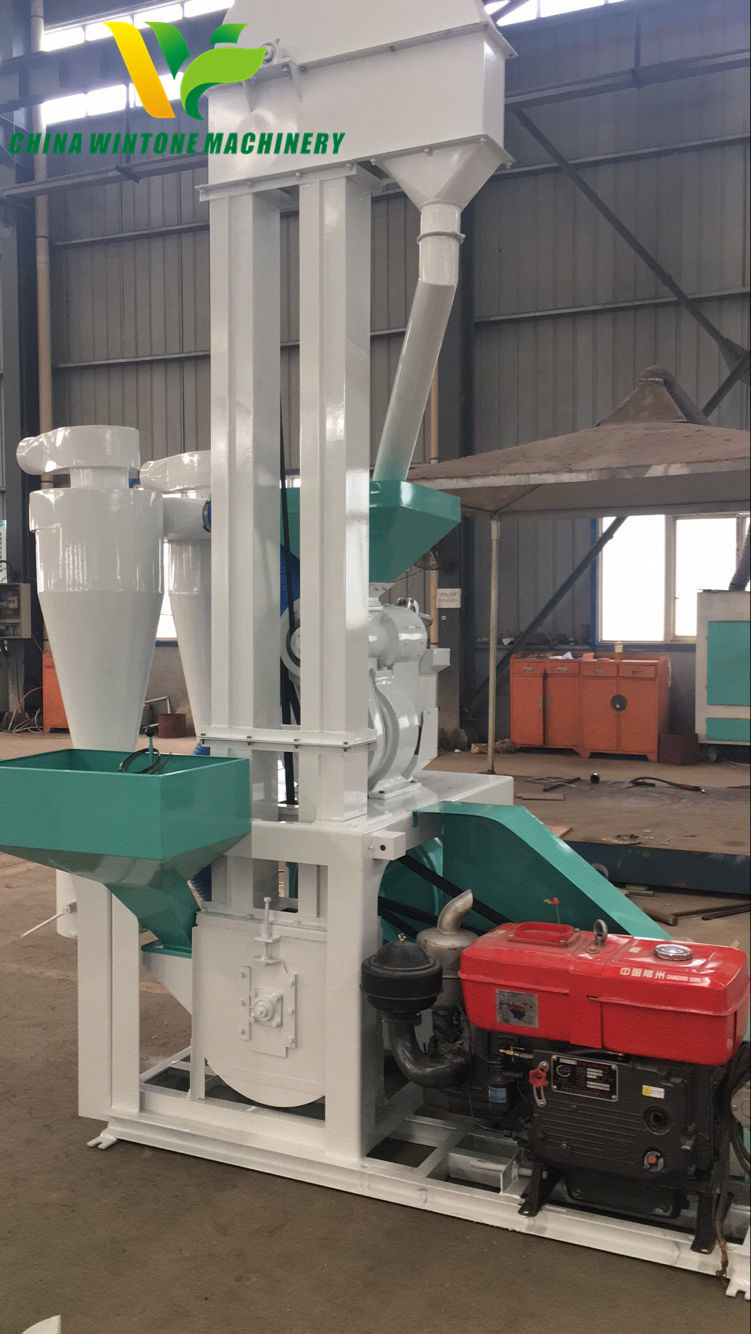

Combination of maize huller + posho mill with diesel engine

This is a China Win Tone Machinery fabricated posho mill. It is combined together with a huller machine which removes the outer covering of the maize seed (testa) so as to mill flour. It is either powered by a diesel engine of 32hp or an electric motor of 22kw high speed.

posho  mill





Main Features:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution.

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

6) Multi function, can be used for corn, millet, beans and other grians milling.

7) Easy operation and maintenance.




Model
原粮
Unprocessed Grain
产量
Yield
(kg/h)
风量
Air Volume
(m³/h)
重量
Weight(kg)
动力
Power
(kW)
皮杂率
Bran Rate(%)
粉粒细度
Powder Fineness(mesh)
外形尺寸
Boundary Dimension
(mm)
YTZF28-40
玉米
corn
600-850
2200-2600
600-800
22
19-30
30-60


2000×1200×3100
水稻
paddy
350-450
40-60
豆类
bean
250-350
40-60


VIDEO:
