      The Designing for 50T/D Corn / Maize Grinding Mill:
      1. We supply you complete line machine from cleaning, to degerminting, milling, packing, controlling system to produce super white maize meal.
      2. Supply you pipes, platform, cables from control penal to each machine, and one year spare parts, what you need supply is workshop, electric, water and 1 miller, 4-6 workers.
      3. The pips in milling system will be stainless steel, more durable and longer lasting.
      4. The control system we use PLC touch screen, the technical flow will show on the screen, and achieve one button boot device, more intelligent.
      5. Moisture damper Stainless Steel, Bin- direction screw, prevent free water, make sure the maize degerminating easy.
      6. Degerminator with Japan and South Africa Technology to scrub the maize germ, with the minimum reduce in size of the broken fragments ensure produce super white, purity high quality maize flour with low fat.
      7. Before packaging design with Micro doser to mixed vitamins in maize meal ( to strengthen the national constitution)
      8. We will also suppler engineer to install the machine for you and training your workers how to operate machines, and teach workers how to maintain the machine.



      maize flour processing plant





      Explain for designing
      A. Capacity: Processes 50 tons of Maize one day(24 hours).
      B. The quality of the raw grain: Africa Maize(soft or hard)
      C. Working system: 24 hours one day.
      D. The quality index of the corn (
      Remark: according to the customer’s standard to adjust designing ):

      Item

      Spec. and Characteristic

      Hard maize

      Soft maize









      Moisture content%

      ≤14.5

      ≤14.0

      Hard maizeminimum)(%

      60

      45












      Quality

      Densitykg/l

      ≥660

      ≥660

      Weight of thousand maize (g)

      295(minimum)

      280(minimum

      Ash (%)

      1.75maximum

      1.7maximum









      Impurity

      Inorganic impurities(%)

      0.4maximum

      0.5maximum

      Other grains (%

      0.3maximum

      0.5maximum

      Incomplete rate%

      4.0maximum

      6.0maximum







      E. End products index:

      1.Corn flour fineness:40-200 meshes (the flour fineness can be adjusted)

      2.Sand content:<0.02%

      3.Magnetic metal content:< 0.003

      4.Moisture storage:13.5-14.5%

      5.Fat content:0.5—1%

      6.Appearance and taste: bright color, fine powder, high quality and pure taste.

      maize flour processing plant

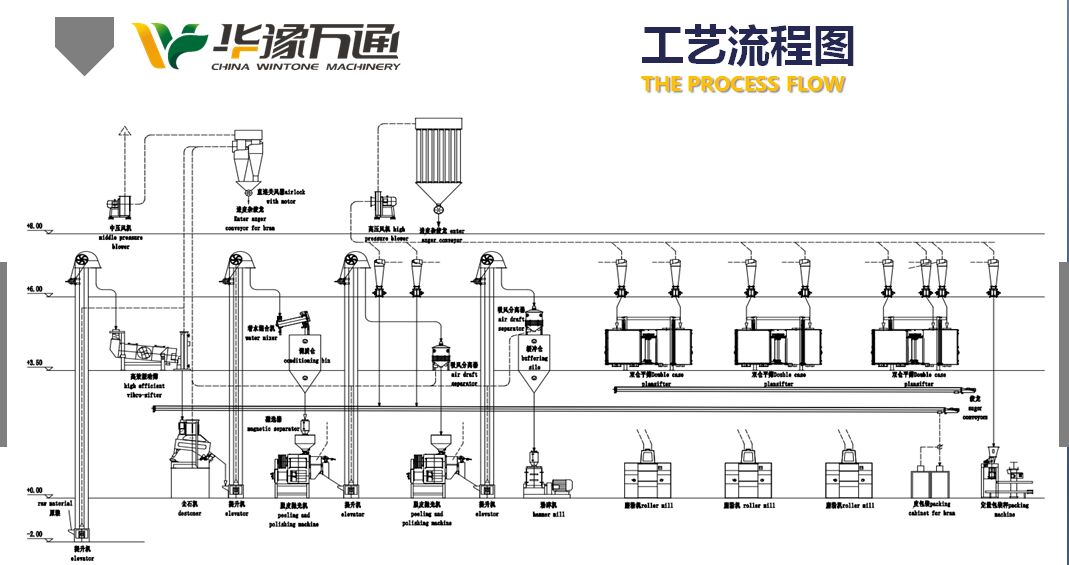

      Technological designing and product index:
      The Principe of the technological designing: to choose the equipment should be guarantee the demand of the craft function and various product quality, it is consisted by most advanced cleaning machine of China.The technological design is reasonable and adjusts vivid, strong adaptability,advance equipment, high automation degree, credibility function, economy and practicality, good cleaning part. Choose the most popular dry cleaning methods to process the maize to produce non-pollution maize meal and maize flour. The stability of the machines is strong, the function is credibility, economy and practicality, the quality of the maize meal and maize flour is stable, index is forerunner.



      corn grinding mill maize grinding mill





      1) Maize cleaning
      Maize cleaning: cleaning process uses vibrating sieve, destoner, magnetic separators for drying cleaning. We adopt world-class degerminator to get whole pcs germ,and use gravity table to getting the maize germ.
      We use double screw damper for keeping moisture the maize. microcomputer control the water damper. add water to ensure a more accurate and uniform water,prevent free water; the use of degerminator for peeling maize into small pieces and embryo separated in order to ensure quality and by fully mechanized and use.



      2) Milling technology
      Milling process uses light maize milling subdivision research methods, advanced maize milling and sifting equipment to ensure its process efficiency, using a set of pneumatic conveying systems, five blower air system, the process can also produce 2-4 kinds of high-quality final products. the fat content- not more than 1%.



      Staff assignments
      According to the conventional business daily processing 30 tons of maize flour mill, the general annual 350days at full capacity, three shifts of production, need every single day every shift one miller 3 workers.

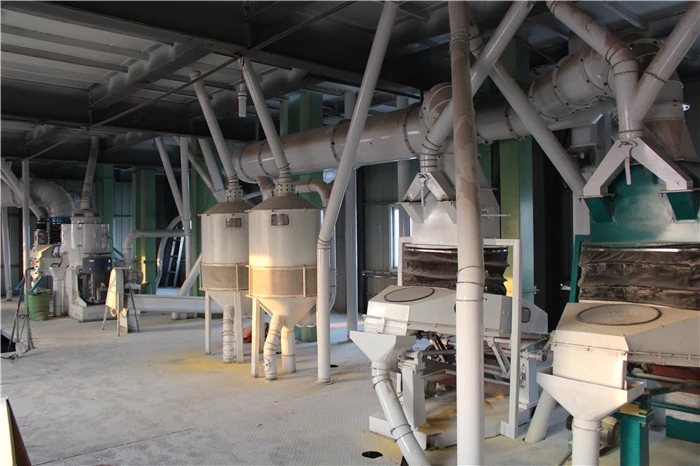

      Live pictures:

      maize flour processing plant



      Our 50Ton Maize Milling Project:

      corn grinding mill



      corn grinding mill.jpg

      corn grinding mill

      corn grinding mill

      VIDEO:
      corn grinding mill video





      End products:



      Yellow maize processing:

      corn grinding mill


       corn grinding mill





      White maize processing:

      maize flour making line



      maize flour making line







      Technical parameter:

      Processing Capacity

      Power

      Power Consumption for Tons of Material

      Yield

      Workshop Size



      KW

       KW/HOUR

      T/24 HOURS

      L×W×H/M



      20T

      72

      58-60

      20T

      20×5×5line structure



      16×5×6steel structure



      30T

      108

      58-60

      30T

      24×5×6line structure



      30×5×5steel structure



      50T

      172

      56-58

      50T

      35×5×7steel structure



      100T

      346

      56-58

      100T

      40×7×8steel structure






                  30T maize flour processing plant



      Large Scale Maize Milling Plant



      Large Scale Maize Milling Plant



      Large Scale Maize Milling Plant



      large maize milling plant



      Large Scale Maize Milling Plant



      Large Scale Maize Milling Plant



      Large Scale Maize Milling Plant



      Large Scale Maize Milling Plant
